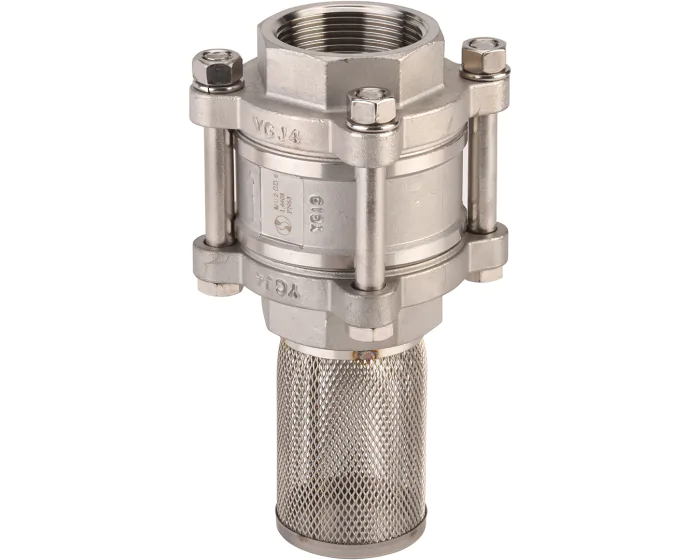

The 383 series is a foot valve, in stainless steel, with strainer basket, BSP threaded ends, metal-metal tightness and PTFE gaskets. It is ACS certified for drinking water and complies with CE 1935 for the food idnustry.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| Mounting direction | Vertical |
| Construction standard | EN 12516-1 - ASME B16.34 |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | API 598. table 6 |
| Closure member material | Stainless steel AISI 316 |
| Strainer basket material | Stainless steel AISI 316 |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Sealing | Metal / Metal |
| Fluid | Acids |
| Gasket | PTFE |
| Kv (m³/h) | 1.2 |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 63 |
| Connections | BSP F |
| Seats | Stainless steel AISI 316 |
| Screen (mesh) | 12/10° |
| TS max (°C) | 200 |
| TS min (°C) | -20 |
| ATEX zone | 1 & 21. 2 & 22 |
| CE | Yes |
| Total height (mm) | 60 |
| Obturator type | Spring |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP F Stainless steel CF8M (1.4408) Spring 3/8'' | 383003 | S1010911 |
€36.69
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 1/2'' | 383004 | S1010912 |
€39.70
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 3/4'' | 383005 | S1010913 |
€52.51
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 1'' | 383006 | S1010914 |
€64.77
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 1''1/4 | 383007 | S1010915 |
€85.89
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 1''1/2 | 383008 | S1010916 |
€105.19
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 2'' | 383009 | S1010917 |
€156.81
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 2''1/2 | 383010 | S1010918 |
€302.00
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 3'' | 383011 | S1010919 |
€374.24
(excl. btw)
|
add to cart |
| BSP F Stainless steel CF8M (1.4408) Spring 4'' | 383012 | S1010920 |
€536.94
(excl. btw)
|
add to cart |
